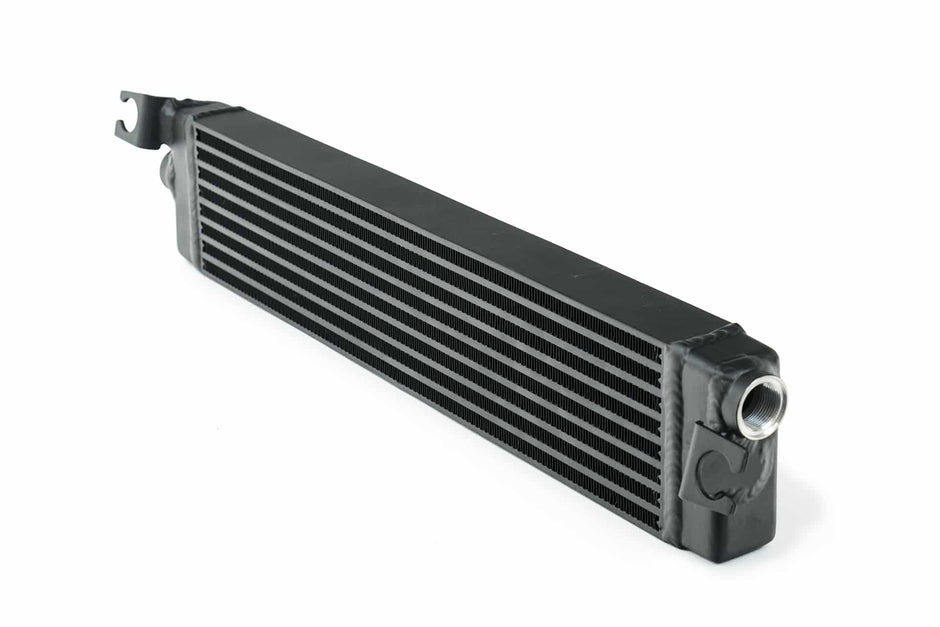

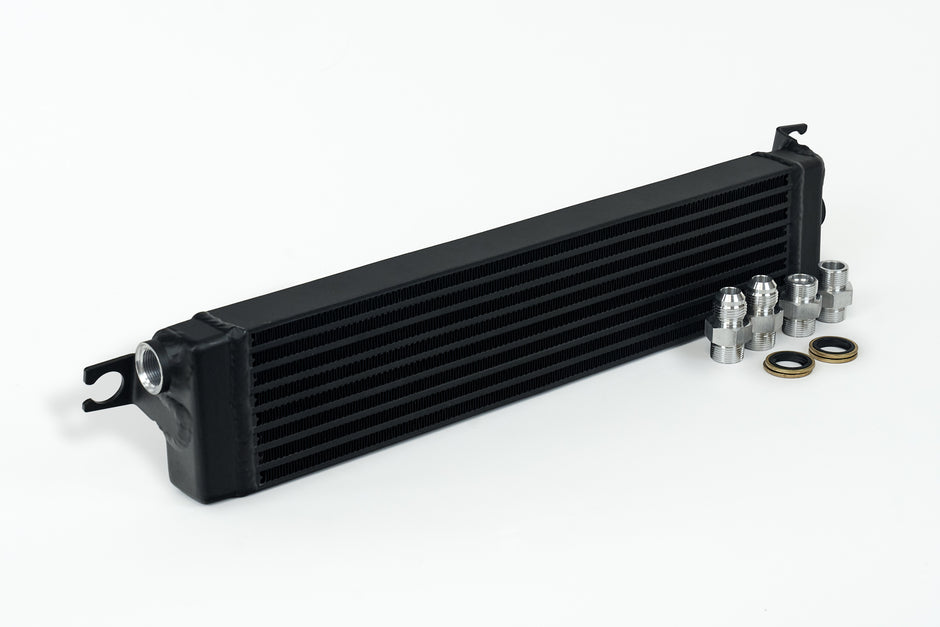

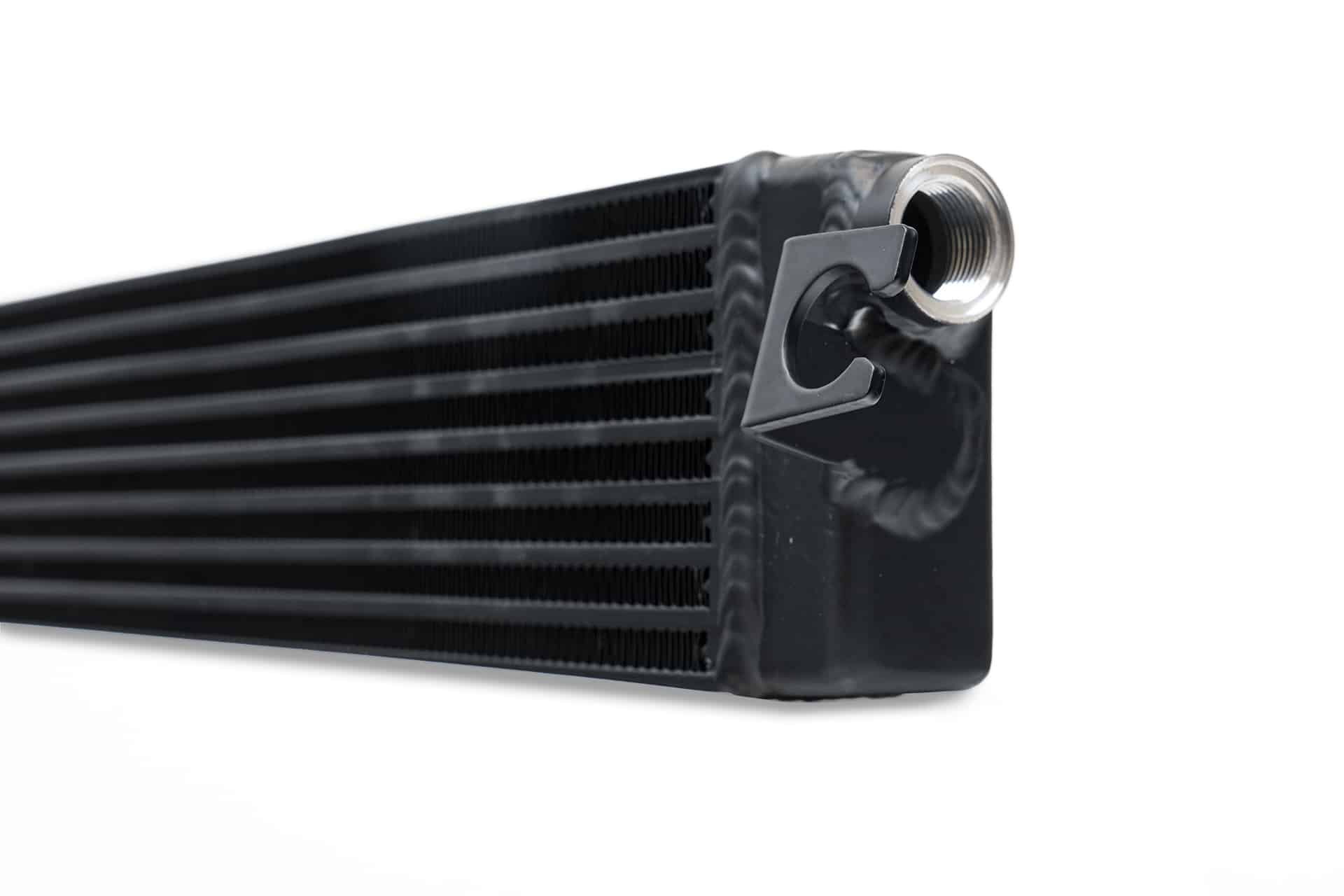

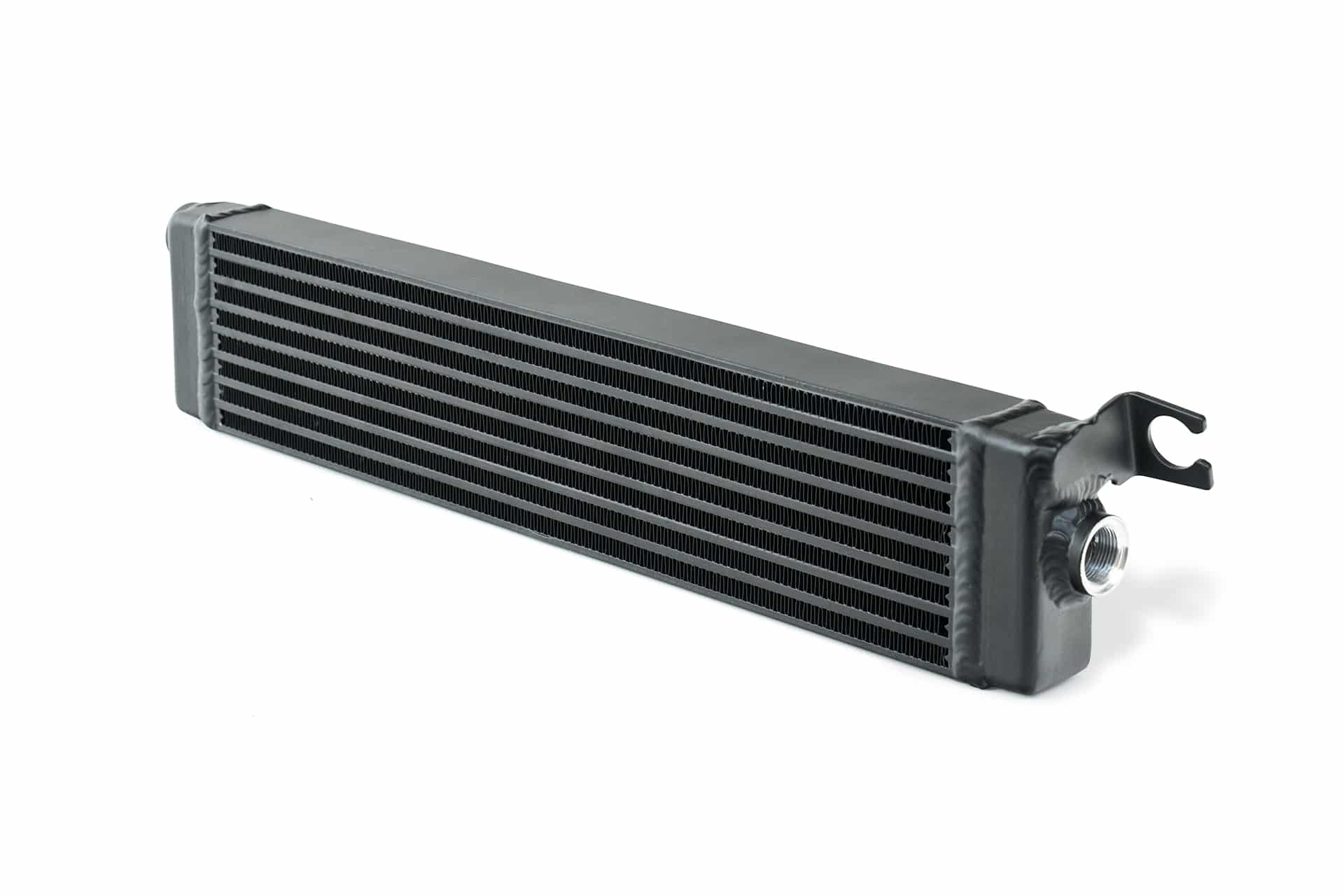

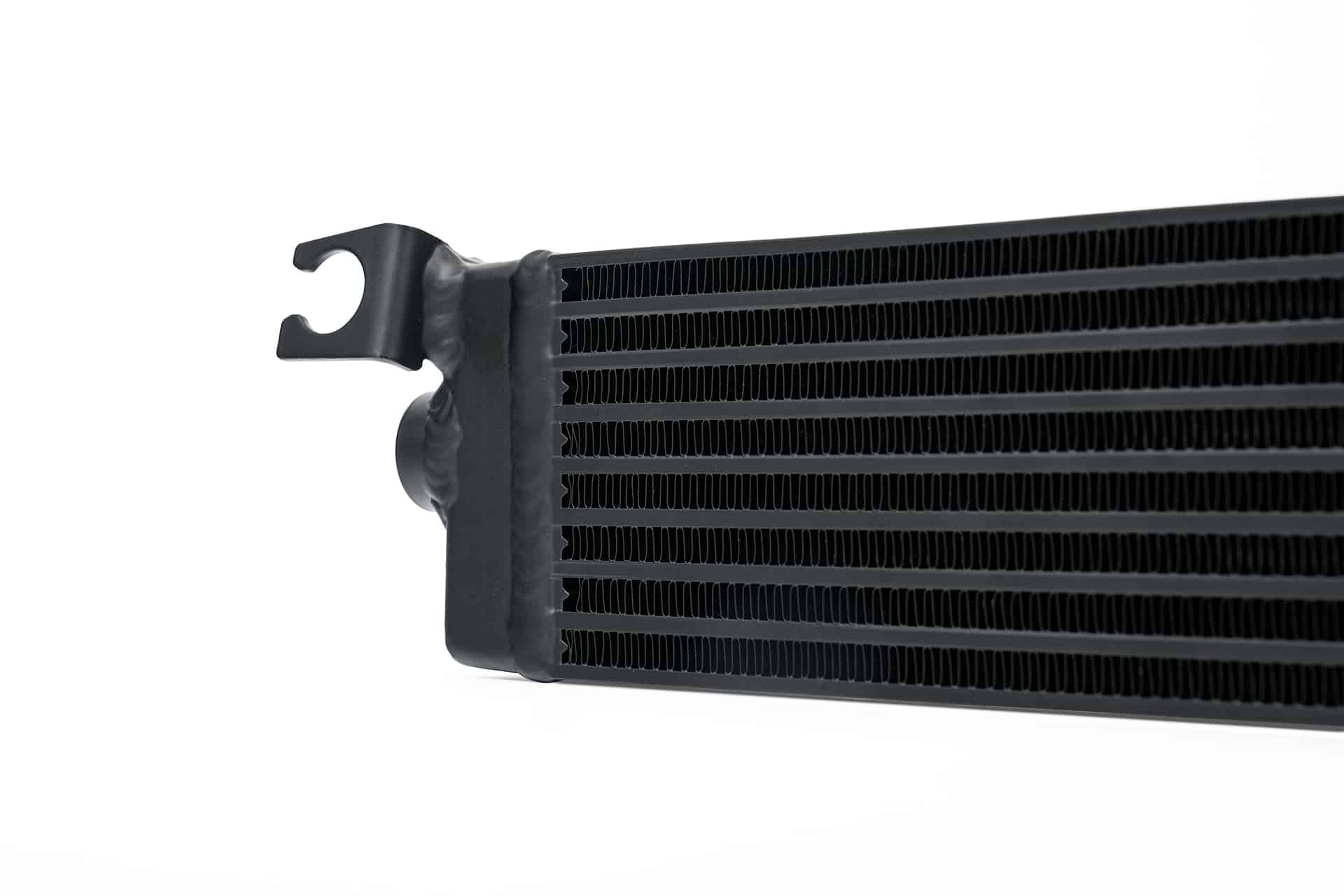

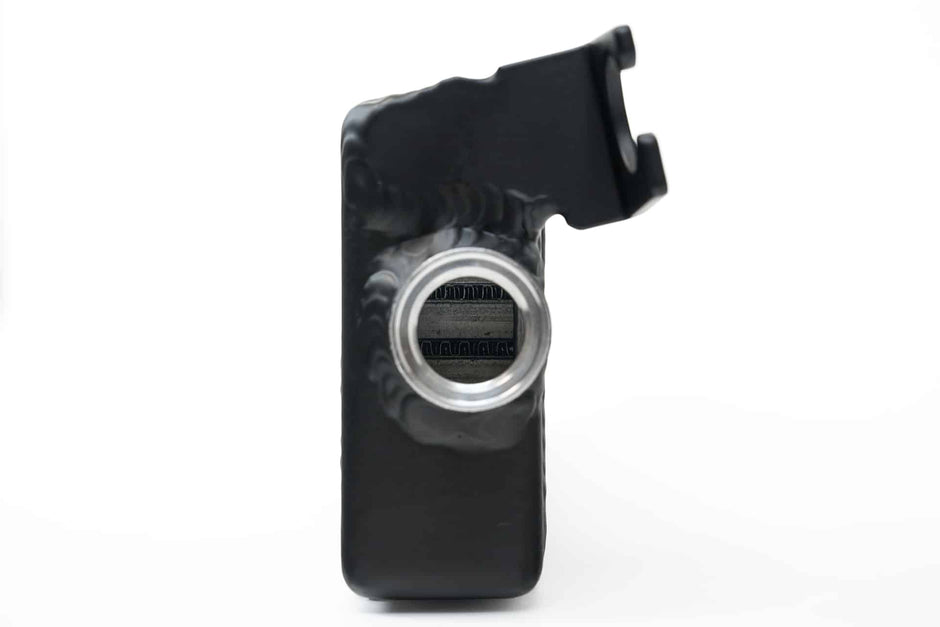

CSF BMW E30 Group A / DTM Race Style Oil Cooler CSF #8218

*Fitment Notes:

1986-1993 BMW E30 M3 (S14)
The long factory oil hard line will not be able to use support brackets on the back of the radiator. This is due to the adapter fittings pushing the lines out about a ½” from factory so the brackets won’t line up but the lines will still run to the proper location and can be connected.

1985-1987 (up to 09/87) BMW E30 325 w/ Factory Oil Cooler
Requires custom lines (factory hard line passes over the oil cooler normally but this unit is too tall to run that line over the top).

1988-1993 BMW E30 325 w/ Factory Oil Cooler

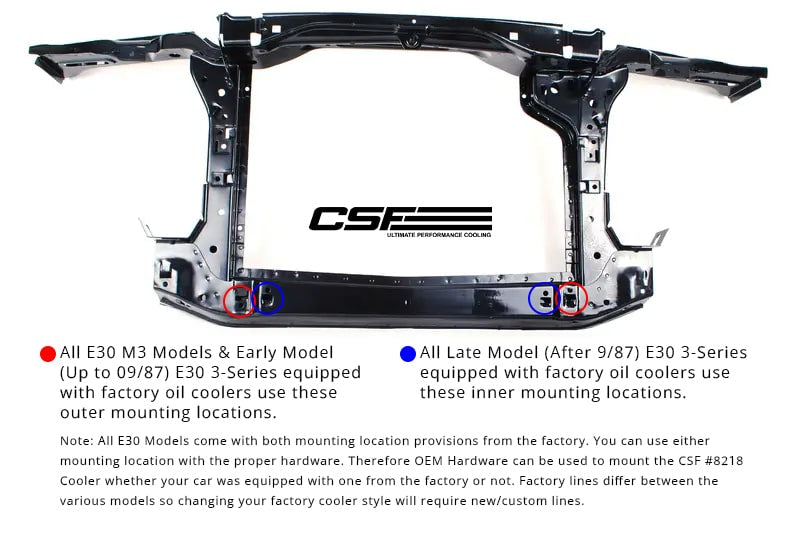

Requires custom lines & mounting hardware. E30 Chassis has provisions for OEM mounting hardware. OEM Mounting Hardware part number listed below.

1984-1993 BMW E30 3-Series w/o Factory Oil Cooler
Requires lines, mounting hardware, and sandwich plate (or provision for oil hook up). E30 Chassis has provisions for OEM mounting hardware. OEM Mounting Hardware part numbers listed below.

The BMW OEM Parts Required for Retrofit:
– Body bracket: #17211719126 x 2
– Rubber grommet: #17211712839 x 2
– Grommet insert: #17211712844 x 2
– Grommet hex head screw: #07119916886 x 2
– Oil cooler O-rings: #17222245358 x 2
